Volvo XC40 Reliability: Problems, Maintenance & Buyer's Guide

The compact crossover Volvo XC40 became a true revolution for the Swedish brand. First presented to the public in September 2017, this automobile marked a new era in the company's history. The XC40 became the brand's first model developed on the CMA (Compact Modular Architecture) platform created jointly with the Geely brand. Agile, nimble, and attractive, it immediately drew attention in many countries worldwide, and in some of them even earned the title "Car of the Year."

New Era: CMA Platform and Drive-E Engine Family

The XC40's appearance marked the finale of a lengthy technological transition after parting ways with Ford. For many years, the Swedes used the technological heritage of their former owner, but the new CMA platform put a definitive end to this story. This quite flexible architecture is notable in that only the distance from the center of the front wheels to the pedal assembly is fixed, while everything else can be adapted to individual tasks and the specific vehicle's construction.

Matching the new platform are engines from the then-young family of inline gasoline and diesel Drive-E motors that appeared in 2013. These units feature numerous interchangeable parts, which simplifies their maintenance and repair.

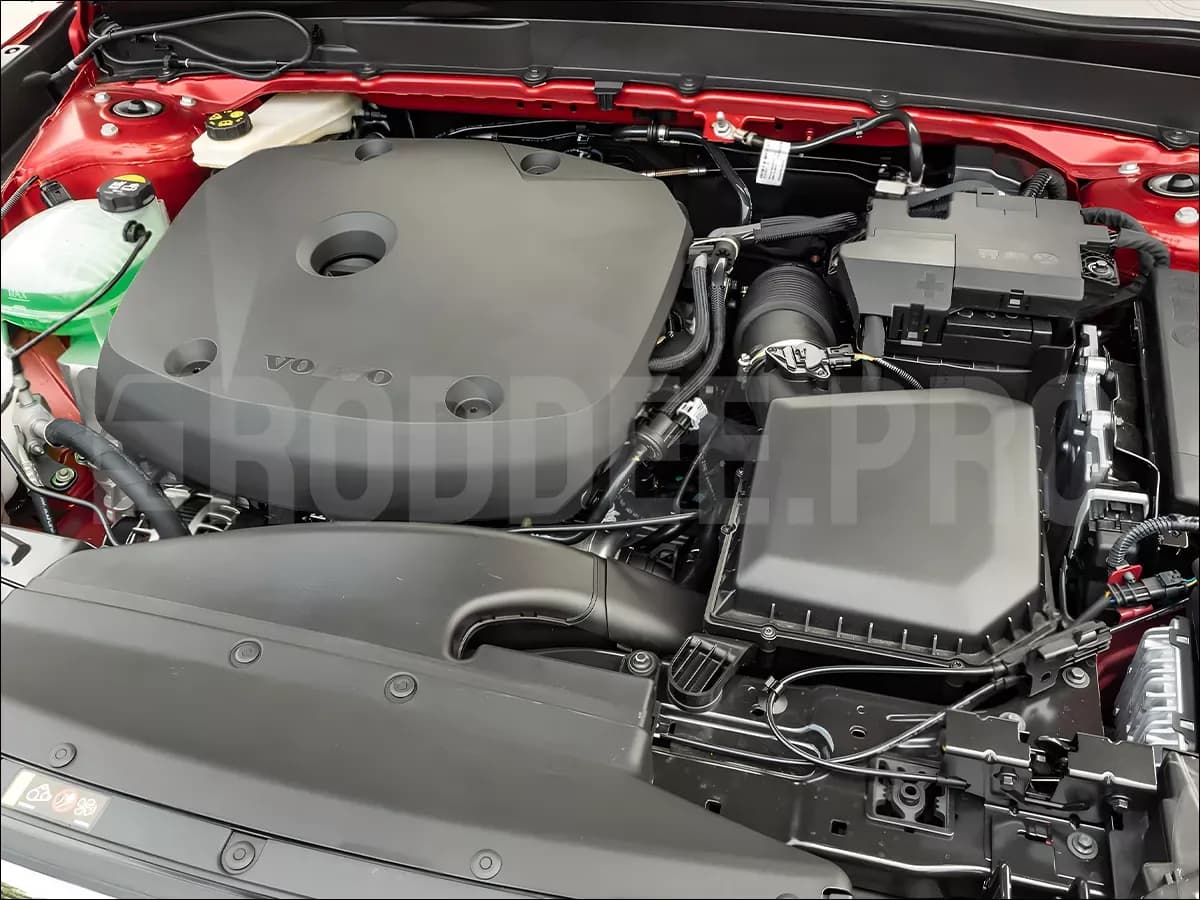

Gasoline Engines

The base engine became the gasoline three-cylinder 1.5-liter turbocharged motor B3154T. It was installed only on front-wheel-drive vehicles that received the T3 designation. The gasoline 2.0-liter four-cylinder B4204T47 came only with all-wheel drive on machines with the T4 index. Its more powerful sibling - also 2.0-liter and four-cylinder B4204T36 - equipped crossovers with drive to both axles. They were adorned with T5 markings.

Diesel Units

The diesel lineup was opened by the 2.0-liter four-cylinder D4204T16. It was installed on both all-wheel-drive and front-wheel-drive XC40s with the D3 index. The largely similar but more powerful 2.0-liter four-cylinder D4204T12 came only with all-wheel drive. These were vehicles with the D4 index.

Main Problems of Drive-E Engine Family

A common problem for all representatives of the Drive-E family, both gasoline and diesel units, is oil leaks. They can occur for a number of reasons, including worn or damaged gaskets, seals, or O-rings, as well as cracked or damaged components.

Valve Cover Leaks

Most often, oil escapes from under the valve cover, and replacing just the gasket alone is unlikely to solve the problem - you'll also have to replace the cover itself. But worse is that oil gets directly onto the timing belt, which significantly shortens its service life. And it lasts only 120,000 km even under favorable operating conditions for both gasoline and diesel versions.

However, you shouldn't rely blindly on this figure - it's better to replace it early, since belt breakage threatens valve destruction, which is always mercilessly bent here.

Other Leak Points

The next places where oil can leak are the camshaft and crankshaft seals, as well as the turbocharger. Owners also report oil leaks at the oil pan joint - over time, the seal deteriorates, leading to leaks. Another common cause of lubricant leaks through the oil pan is damage to the drain plug.

Specific Problems of Gasoline Engines

Problems specific to gasoline 2.0-liter versions include interruptions in high-pressure fuel pump operation, which threatens engine shutdown. Nevertheless, it must be acknowledged that these problems are still rare - most often the fuel pump calmly serves its 130,000 km and even more. But sometimes troubles do occur, and the frequency of their occurrence is directly related to fuel quality and the lubricants used.

Impact of Fuel and Oil Quality

Drive-E engines cannot tolerate surrogates and low-quality products. Because of them, the service life of many components is sharply reduced. For example, iridium spark plugs are installed from the factory, which should easily last 80-100,000 km, but with poor-quality fuel they can be killed very quickly.

When replacing spark plugs, it's worth continuing to use spark plugs with noble metals. And engine oil is better changed at least every 8-10 thousand kilometers, not 20,000 km as Volvo recommends. During every second oil change, along with the oil filter, the fuel filter must also be changed.

Regular Maintenance

After 50,000 km of mileage, it won't hurt to clean the injectors, throttle body, and EGR system. And closer to 100,000 km, you'll likely have to replace the mass airflow sensor - either due to contamination or because it has exhausted its service life. A faulty sensor will start transmitting incorrect readings to the control unit, which in turn will calculate the wrong composition of the fuel-air mixture, which can lead to a number of unpleasant consequences.

Diesel Engines: Calm and Reliability

There's little information about the 1.5-liter turbocharged gasoline engines -- buyers were wary of them, bought them reluctantly, so it's difficult to gather adequate failure statistics. But the crossover's diesels of various power levels don't puzzle with complex problems.

The compact XC40 was lucky - they didn't provide a D5 modification for it, equipped with the most powerful heavy fuel units fitted with the PowerPulse system. This system, with its capriciousness and fragility, caused many headaches for owners of larger Volvo models.

The motors for the crossover with D3 and D4 indices are much more compliant and calm. The maximum that can threaten tiresome service visits is breaking, bursting from overheating, and burning out hoses and their seals. But specialized service personnel are well familiar with these problems, so they eliminate them quite quickly.

Oil Level Sensor Problems

On some machines, the oil level sensor malfunctioned, causing a message about exceeding the permissible level to appear on the computer. Initially, dealers attributed everything to isolated system glitches, but when such cases became very numerous, the Swedes issued a service bulletin. It prescribed changing the oil and oil filter, then adjusting the oil level sensor by updating the firmware. After this, all problems disappeared.

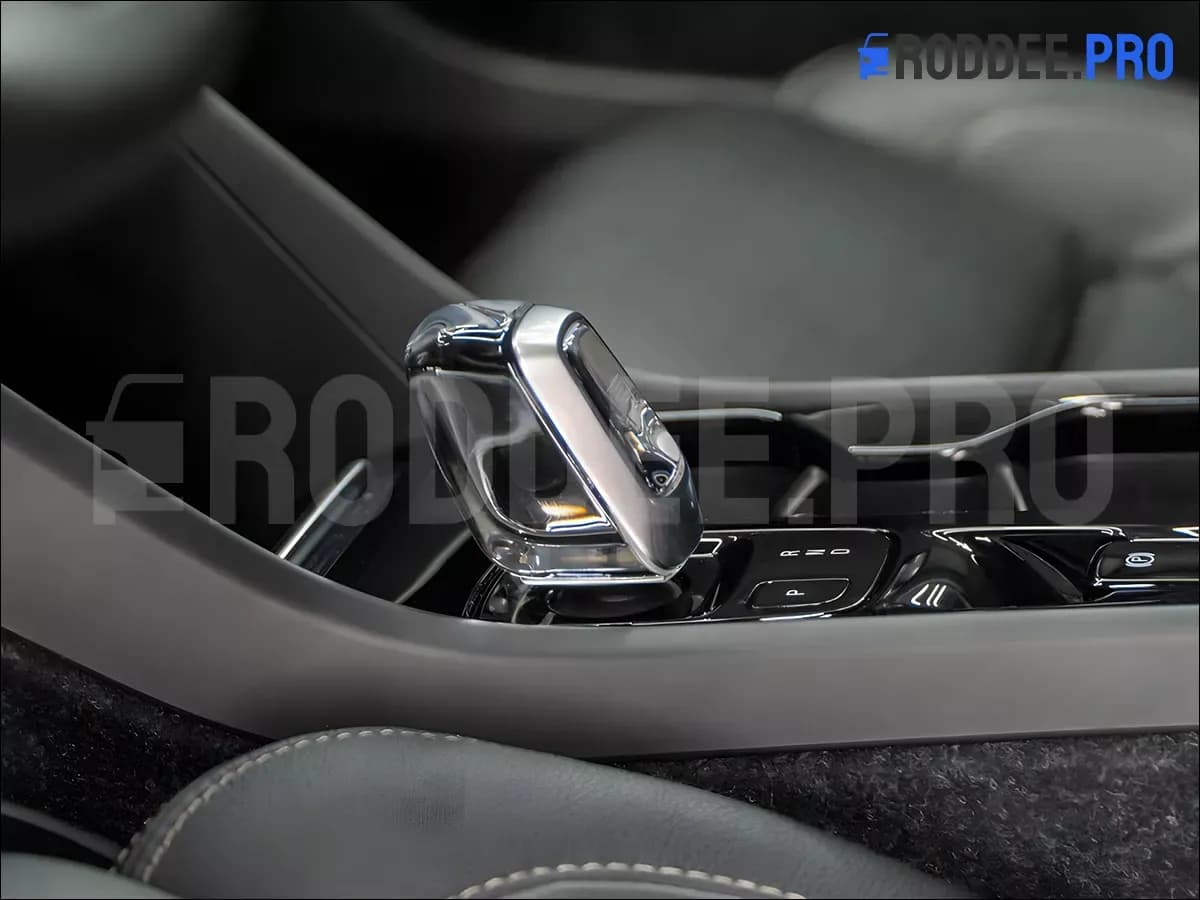

Transmission: Time-Tested Automatic

As the only transmission option on all officially sold crossovers, the well-known Aisin AWF8 gearbox is used, which has found application on many models from various manufacturers. On Volvo, this automatic received the designation Geartronic TG-881.

This automatic is deservedly considered one of the most reliable currently. Before major overhaul, it easily covers 200-300,000 km. The main reason for car owners' service visits are problems with the torque converter due to overly aggressive driving style or when serious loads occur on an unwarmed gearbox.

Operating Rules

As a result of improper operation, friction steel discs burn out or Teflon linings and brake bands wear out. The gearbox starts "kicking" when shifting gears - jerks and jolts occur because the oil becomes filled with wear products.

For the same reason, try to avoid modes where overheating can occur - this also wears out Teflon rings, pressure drops, and friction plates start burning. But if you avoid aggressive driving modes and change transmission fluid every 40-50,000 km, the gearbox is unlikely to bother you.

It's also recommended for preventive purposes to clean the heat exchanger at least with every gearbox oil change. However, on 2017-18 models, jerks and jolts could occur for another reason - there was a software failure that was eliminated by updating the software.

Fifth-Generation Haldex All-Wheel Drive System

The Volvo XC40's all-wheel drive is handled by the latest fifth-generation Haldex coupling. Changes in design and settings allow it to work faster and more accurately, but considering that this system lacks a filter, it needs oil changes more frequently - not every 50-60,000 km like predecessors, but every 30-40,000 km.

If the crossover owner frequently drove on rough terrain, specialists recommend shortening this interval by another one and a half to two times depending on the load the unit is subjected to.

Haldex System Maintenance

To properly perform the oil change, you'll have to remove the pump. This isn't difficult - there are only a few bolts holding it, but before filling oil, you must clean the screen and internal surface of the pump itself. It's advisable to use special products for this.

Among other things, it's advisable to replace the O-rings of the pump's bolt mountings and plugs. If everything is done correctly and timely, the coupling will serve very long without interruptions. The vast majority of reports about unit failures are exclusively related to incorrect maintenance.

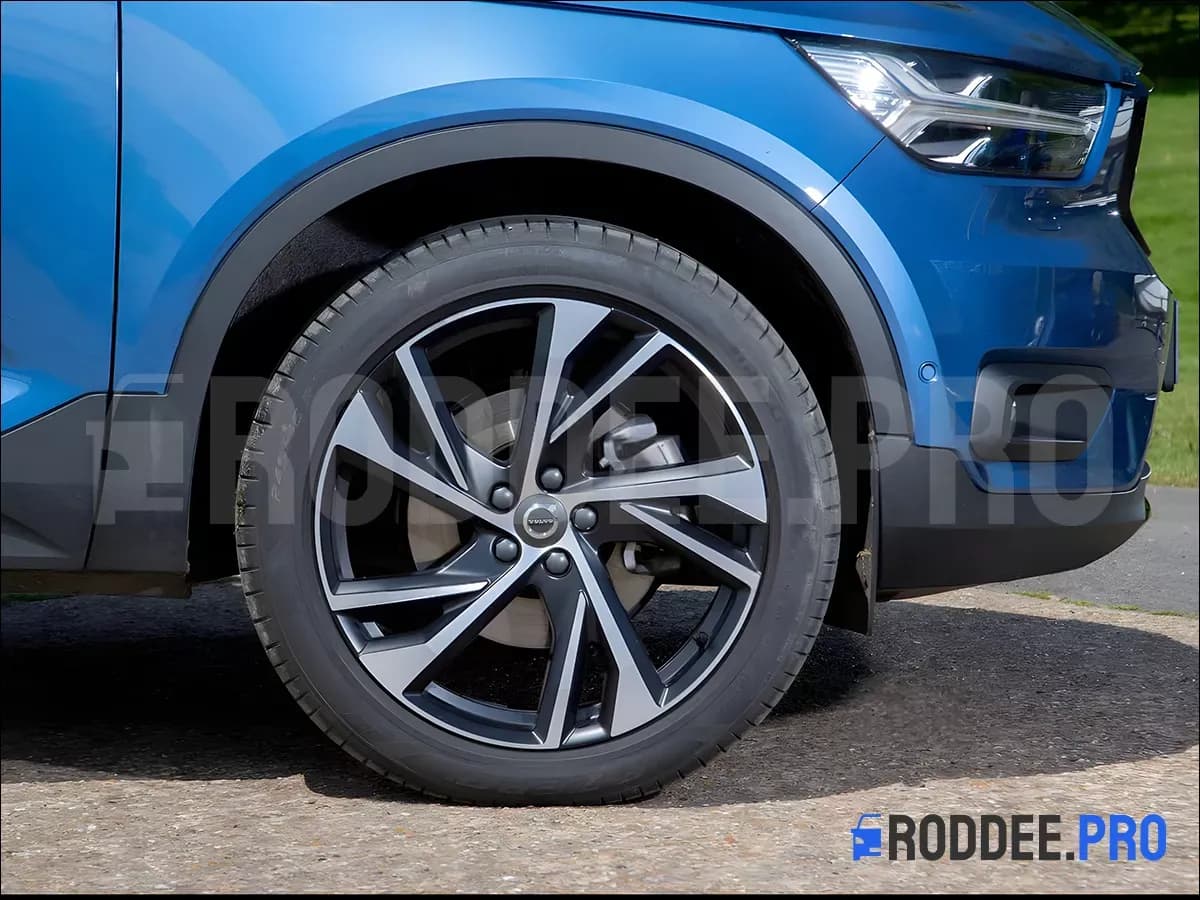

Suspension: Design Features and Wear

When studying the Volvo XC40 suspension, we immediately note that many vehicles showed a design defect in the front suspension. It led to accelerated wear of support bearings due to incorrect spring action - its upper coil pressed against the bearing's seating surface and deformed it. Most likely, this was caused by incorrect spring positioning on some models.

Characteristic Signs of the Defect

The presence of this defect was evidenced by a characteristic click in the front suspension, which could appear already at low mileages around 20-25,000 km. Gradually, as the bearing wore out, extraneous sounds intensified, and by approximately 50-60,000 km it could become completely unusable.

To prevent this, Volvo's service bulletin prescribes repair: disassemble the strut, file down the spring's upper coil, then carefully insulate the area with heat-shrink tape, then reassemble the strut with a new support bearing and install it on the vehicle.

Shock Absorbers and Other Suspension Elements

The shock absorbers themselves on the Volvo XC40 are quite durable - they're usually replaced after 140-150,000 km. The car wasn't as lucky with wheel bearings - cases of their failure at distances around 60,000 km are known.

As for brake pads, they'll need to be replaced every 45-50,000 km both front and rear. However, as experienced Volvo XC40 owners say, regular use of the Pilot Assist system, which combines driver assistance systems (particularly radar cruise control and lane-keeping system), significantly shortens this distance, apparently due to frequent braking.

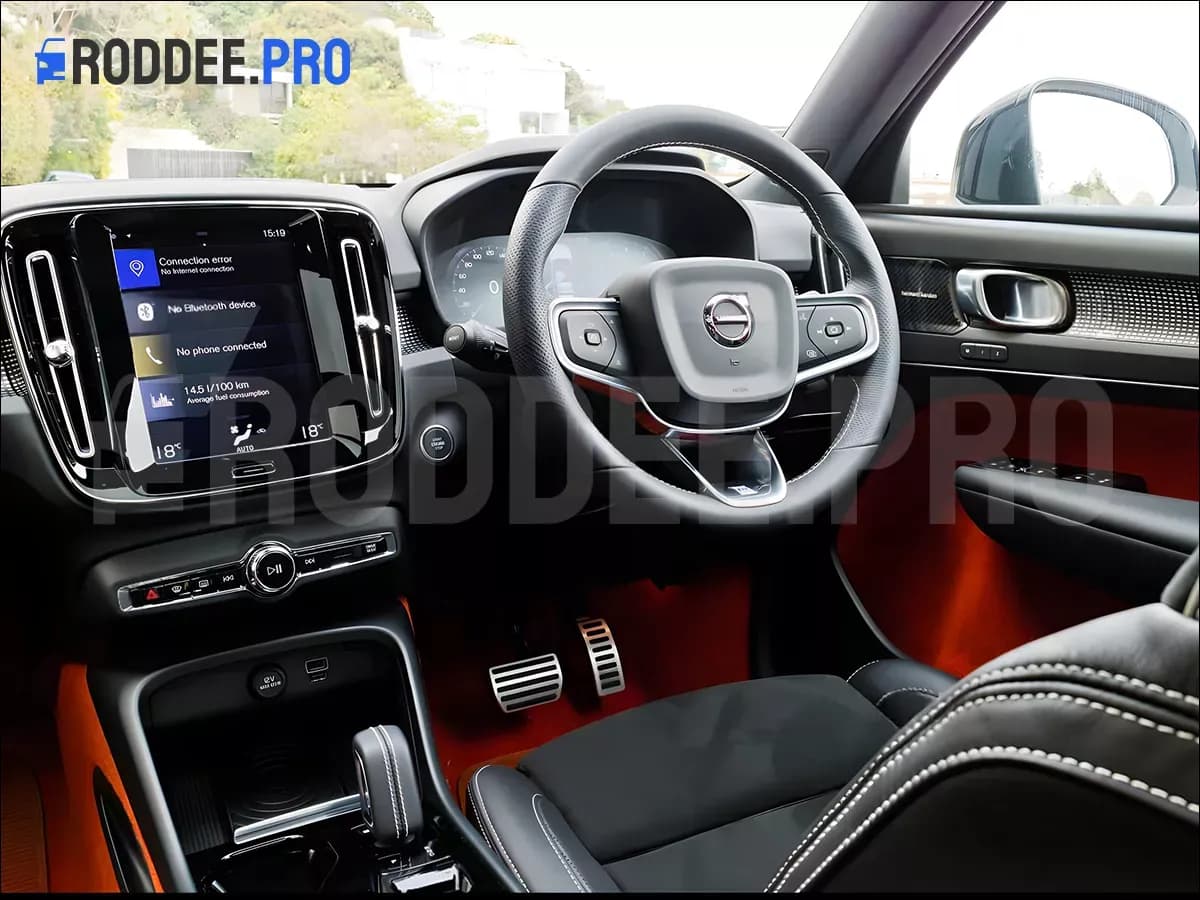

Electronics: Whims of Modern Technology

Regarding electronics, unfortunately, the Volvo XC40 regularly lets down. Volume control fails, climate control fails, and so on. Fighting the negative consequences of these failures, owners have developed several algorithms that restore device functionality.

Solutions to Electronic Problems

The simplest method is to stop, turn off the engine, get out of the car, lock it with the key, and wait 20-30 minutes, possibly longer - time can stretch to an hour. If this method doesn't help, there are more radical approaches - reset all settings to factory values. However, all personal and other information will be deleted.

Unfortunately, this isn't the end, because you need to consider that the system needs time to "wake up," so you need to allow another 5-10 minutes for this. So if the screen doesn't wake up for a long time, don't worry. In the worst case, you'll have to go to the dealer and reflash the control unit or individual modules, especially since updates regularly come out to this day.

XC40 crossover owners also encountered other electronic failures of various natures. It's simply impossible to list them all, but can we say in this regard that the first car on the CMA platform turned out unsuccessful? Rather not, because the mechanical part of the Volvo XC40 is quite reliable, and all electronic glitches weren't systematic and were resolved quite simply.

Conclusion

The Volvo XC40 represents an interesting compromise between modern technology and traditional Swedish reliability. Despite some teething problems related to electronics and individual design features, this compact crossover generally meets owners' expectations.

The vehicle's mechanical part shows itself to be quite reliable with timely and quality maintenance. Drive-E family engines, despite their tendency for oil leaks, can work for a long time when using quality consumables and observing service intervals.

The Aisin gearbox has earned a reputation as one of the most reliable in its class, and the fifth-generation Haldex all-wheel drive system can serve very long with proper maintenance. Regarding suspension, despite the known problem with support bearings, it generally demonstrates acceptable service life.

Electronic quirks are certainly disappointing, but they're not critical and are usually resolved quite simply. The main thing is to remember that a modern car requires careful attention to maintenance, use of quality consumables, and regular visits to specialists familiar with the specific model's features.
