Mazda CX-7 Used Car Guide: Complete Buyer's Review

Introduction

The Mazda CX-7 appeared on the global market as a bold experiment by the Japanese manufacturer in the sports crossover segment. From the very beginning of its existence, the model proved to be quite popular, thanks to a number of objective reasons. In this article, we will examine in detail the features of this vehicle, its strengths and potential problems that should be considered when choosing a used example.

The Mazda CX-7 crossover quickly gained popularity thanks to its sporty appearance, spacious interior, impressive dynamics for its class, and reasonable price. After the 2009 facelift, which eliminated a number of technical issues, model sales grew noticeably. However, in 2012, the manufacturer decided to discontinue the model to focus on a new generation of crossovers.

Model History and Modifications

The Mazda CX-7 was produced from 2006 to 2012. The 2009 facelift affected not only the appearance and interior — the company's engineers modernized the turbo engine, making it less demanding for maintenance, and also retuned the suspension for greater comfort.

After 2010, the crossover received a new modification with a naturally aspirated engine, front-wheel drive, and even the possibility to order the car with a manual transmission. This allowed expanding the lineup and attracting new buyers who preferred more economical and easier-to-maintain vehicles.

On the secondary market, prices for the Mazda CX-7 vary significantly. Naturally, pre-facelift cars will be cheaper, but don't chase low prices. Very cheap examples will most likely require serious subsequent investments.

Engines and Their Features

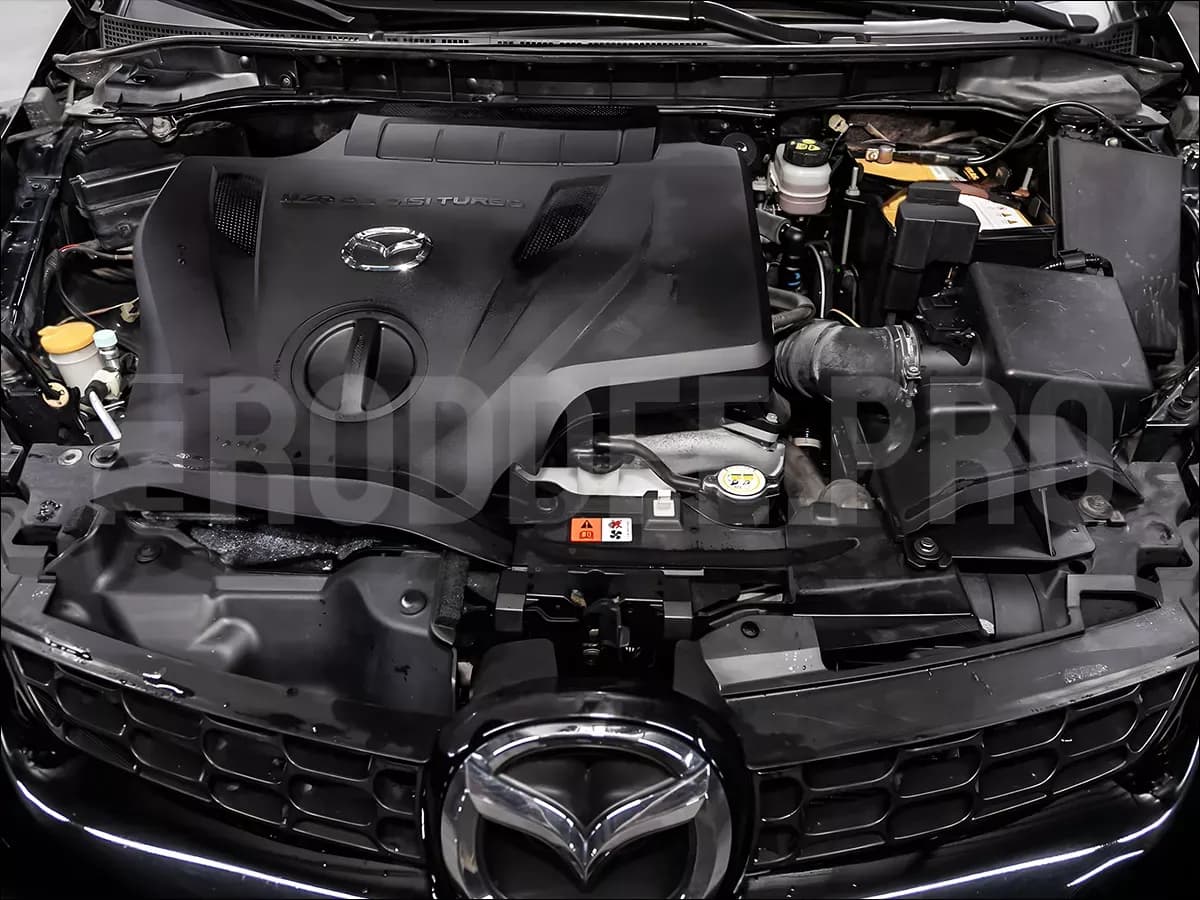

2.3 L3-VDT Turbo Engine

The main power unit of the Mazda CX-7 is the turbocharged L3-VDT engine with a displacement of 2.3 liters and 238 horsepower. This engine was quite advanced for its time — the high compression ratio (9.5 units) required engineers to use direct fuel injection, which was a cutting-edge solution in the late 2000s.

It's important to understand that the L3-VDT was created as a sports engine, so maintenance requires appropriate attention. The only difference from the version installed on the Mazda 3 MPS is slight detuning, thanks to which the CX-7 can consume 95-octane gasoline instead of only 98-octane.

The manufacturer recommends changing engine oil every 15,000 km, however, to extend engine life, specialists and experienced owners recommend reducing this interval to 6-8 thousand kilometers and using oil with viscosity no lower than 5W-40. Using thinner oils and extended change intervals can lead to accelerated wear of hydrodynamic bearings in the turbine, scoring on cylinder walls and camshafts, as well as premature failure of the phase shifter on the intake camshaft.

If you hear crackling from under the hood during startup or engine warm-up, don't delay a service visit. This brief (about 3 seconds) but clearly audible sound indicates problems with the phase shifter lock. After the facelift, this unit underwent additional heat treatment and began lasting longer.

The timing chain is recommended to be preventively replaced at around 100,000 km mileage. From March 2010, Mazda improved the timing mechanism: strengthened the chain and enhanced the design of tensioners and guides.

The high-pressure fuel pump is another component requiring attention. The cause of HPFP failure often becomes gasoline leaks through the built-in pressure sensor. If you smell gasoline from under the hood, you need to immediately check this unit. With normal operation and quality fuel, the sensor usually doesn't start leaking before 100,000 km.

Fuel quality also affects the service life of the lambda sensor and catalytic converter. If the catalytic converter usually serves up to 150,000 km, the sensor may fail as early as 60,000 km.

Turbocharger

Special attention should be paid to the turbocharger. The CX-7 is equipped with a classic turbine with a bypass valve, without variable geometry. With proper operation, it can serve the entire engine lifespan.

The main mistake owners make is shutting off the engine immediately after intensive driving. The red-hot turbine, which can rotate at speeds up to 100,000 RPM, instantly cools down, turning oil into hard lacquer that gets stuck in the precision sliding bearing. Subsequently, insufficient lubrication and increased bearing clearance lead to the turbine beginning to "push" oil into the exhaust system. This results in oil consumption, white smoke from the exhaust pipe, and then the catalytic converter suffers.

Another problem is that the tubes through which oil is supplied to the turbocharger bearings become coked over time. After this, turbine failure occurs very quickly. The solution to this problem is installing a turbo timer and frequent oil changes with preliminary flushing. If these recommendations are ignored and oil is changed every 15,000 km, the turbine may fail as early as 30,000 km, although sometimes its life can be extended to 60,000 km.

After the facelift, this unit was modernized, its service life increased, but not dramatically. With proper maintenance and careful operation, the 2.3 turbo engine can go up to 250,000 km without serious breakdowns.

2.5 L5-VE Naturally Aspirated Engine

Against the background of the complex turbo engine, the 2.5 L5-VE naturally aspirated engine with 163 hp looks significantly simpler and more reliable. Its issues are well known from the Mazda 6: after 60-80 thousand kilometers, the flaps in the intake manifold may start rattling and the crankcase ventilation system may not work very well. However, with proper maintenance, such an engine's lifespan is about 300,000 km.

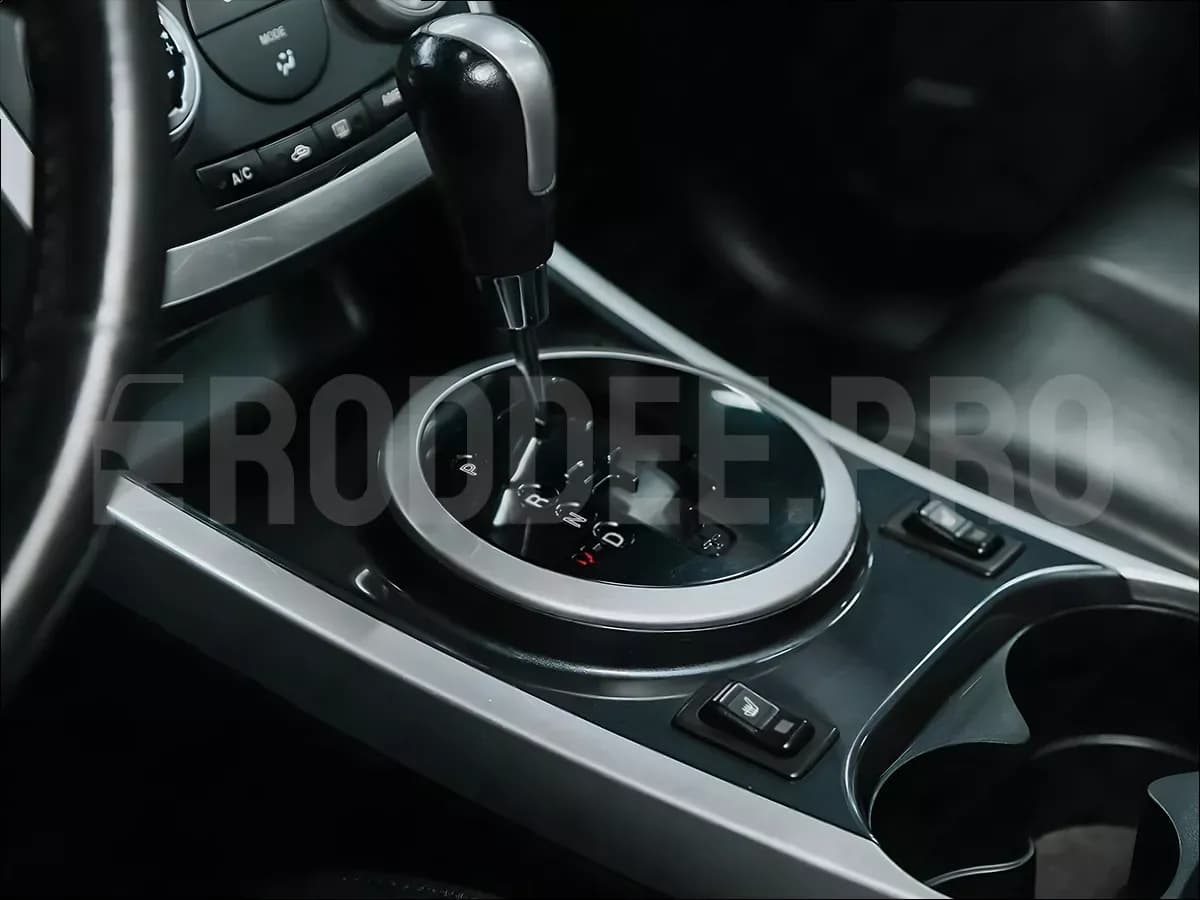

Transmission

Six-Speed Aisin Automatic

The six-speed Aisin automatic transmission, installed with the 2.3 engine, is exceptionally reliable and can outlast the car itself. This gearbox is only sensitive to dirty oil and a clogged filter, which should be changed every 30,000 km.

Sometimes the torque converter lock-up clutch linings may wear down to the adhesive layer. If the moment isn't missed, repair won't require significant costs.

Five-Speed FN R5 Automatic

With the Mazda five-speed automatic that was installed with the 2.5 naturally aspirated engine, the situation is slightly more complex. Taking the old Ford unit as a base, the Japanese made it more responsive and reliable, however, it has a serious flaw — possible weakening of the welded connection between the housing and ring gear of the planetary gear, after which the car loses reverse gear.

Manual Transmission

Regarding the six-speed manual transmission, due to the small number of such cars, statistics are limited. Individual owners note only increased noise after 200,000 km mileage, as well as difficult engagement of second and third gears, which is most likely related to bearing and synchronizer wear.

All-Wheel Drive

The Mazda CX-7's all-wheel drive system is built on a transfer case and electric clutch with angular reducer. This system is distinguished by reliability and durability even under active use.

Sometimes jerks may appear when the rear axle engages. This indicates that the clutch friction plates are clogged with dirt and cleaning is required. The transfer case may start leaking after 60,000 km due to dried sealant at the reducer joint. In this case, the unit will need to be disassembled and new sealant applied.

It's important to regularly change oil in the reducers — approximately every 50,000 km of mileage.

Suspension

Overall, the Mazda CX-7 suspension is quite robust. At 30,000 km, stabilizer bar links may start squeaking, but this is a minor problem, easily remedied by replacement.

On pre-facelift examples, rear bearings, which are supplied only as an assembly with the hub, could start humming at 60,000 km mileage.

Shock absorbers, both front and rear, serve from 80 to 130,000 km depending on load and road quality. At the same mileage, front strut mounts will probably also need replacement.

Steering

Steering system reliability depends on the car's production year. On cars produced before 2009, there were problems with power steering hoses. On facelifted examples, clamps were reinforced and the cooling line length was reduced, which eliminated the problem.

Brake System

Brake system lifespan directly depends on driving style. For active driving enthusiasts, brake discs may warp due to overheating. Many owners install perforated tuning discs or a complete brake system from the larger CX-9 model to improve braking efficiency.

Body and Exterior

The Mazda CX-7 body is well protected from corrosion, so the main owner complaints concern peeling chrome elements and badges. Corrosion spots on the lower parts of doors are rarely encountered.

There are certain problems with lighting. Front headlights, especially xenon ones, are prone to fogging. Rear lights on pre-facelift cars may have circuit board failures. Experienced owners solve both problems as follows: front headlights are disassembled, thoroughly sealed and glued, and drainage tubes are installed to remove moisture. LEDs are often installed in rear lights instead of standard bulbs.

Interior

There are minimal complaints about the Mazda CX-7 interior. It's assembled from decent materials and, despite the abundance of hard plastic, doesn't annoy with squeaks. Sometimes "crickets" may appear around air vents, but this is rare.

Choosing a Used Example

When choosing a used Mazda CX-7, pay attention to the following points:

1. Service History: Ideally, the previous owner should have a complete service history indicating all work performed and parts replaced. Pay special attention to oil change intervals — the more frequent, the better.

2. Mileage and Engine Condition: Check for characteristic crackling during engine startup and warm-up, which may indicate phase shifter problems. Pay attention to exhaust color — white smoke may indicate turbine problems.

3. Turbine Operation: During test drive, evaluate how the car responds to gas pedal input. Turbo lag should be minimal, and acceleration should be smooth without jerks.

4. Transmission Condition: Ensure the automatic transmission shifts smoothly without jerks. For versions with five-speed automatic, definitely check reverse gear operation.

5. All-Wheel Drive: Check all-wheel drive system operation, especially smooth rear axle engagement during acceleration.

6. Body: Carefully inspect the body for signs of accident repair. Uneven gaps between body panels may indicate poor-quality repair.

7. Lighting: Check for fogging in headlights and proper operation of all lighting devices.

Conclusion

The Mazda CX-7 is an ambiguous car. On one hand, due to the forced turbo engine requiring increased attention, it cannot boast the image of a trouble-free and reliable car. On the other hand, it's more about an incompetent approach to servicing such engines rather than design flaws.

In caring hands, this crossover can serve quite long without frequent breakdowns. Therefore, when choosing a Mazda CX-7, it's critically important to make the right choice: don't be tempted by an enticingly low price and carefully check the car you like.

If you're ready to pay increased attention to maintenance (especially with the turbocharged version) and aren't afraid of more frequent service visits than the average crossover, then the Mazda CX-7 can be an excellent choice, offering in return bright design, excellent dynamics, and driver character.

Main Operating Recommendations

1. Change engine oil every 6-8 thousand kilometers (for turbo version).

2. Use oil with viscosity no lower than 5W-40 for the turbo engine.

3. Don't shut off the engine immediately after intensive driving — let it idle for 2-3 minutes.

4. Consider installing a turbo timer for additional turbine protection.

5. Change the timing chain preventively at around 100,000 km mileage.

6. Regularly change transmission oil (every 30,000 km for automatic transmission and 50,000 km for all-wheel drive reducers).

7. Use only quality fuel.

8. Pay attention to unusual sounds during engine and suspension operation.

Following these recommendations, you'll be able to maximize the Mazda CX-7's service life and enjoy owning this bright and charismatic vehicle.
