Mercedes-Benz E-class W211: A Legend of German Automotive Engineering

Introduction: The Arrival of a New Generation

"If you're going to love a queen, if you're going to desire something, let it be a Mercedes" this phrase has long become iconic among car enthusiasts. And for good reason. The Mercedes-Benz E-class has always been the benchmark for prestige, comfort, and technology in its segment. Today we'll examine one of the most significant generations of this model the W211, a car that continues to inspire admiration among connoisseurs and casual car lovers even a decade after production ended.

The predecessor of this car in the W210 body was usually called "bug-eyed" due to its characteristic four headlights. And although the W211 also has four headlights, such nicknames didn't stick the design of the new generation was too elegant and harmonious.

The first W211 models began rolling off the assembly line in 2002. In 2006, a facelift refreshed the appearance and eliminated some of the model's "childhood diseases," and in 2009 the next generation of E-class appeared. Thus, the W211 was produced for 7 years a sufficient period for the model to undergo serious evolution from the first specimens to well-refined post-facelift versions.

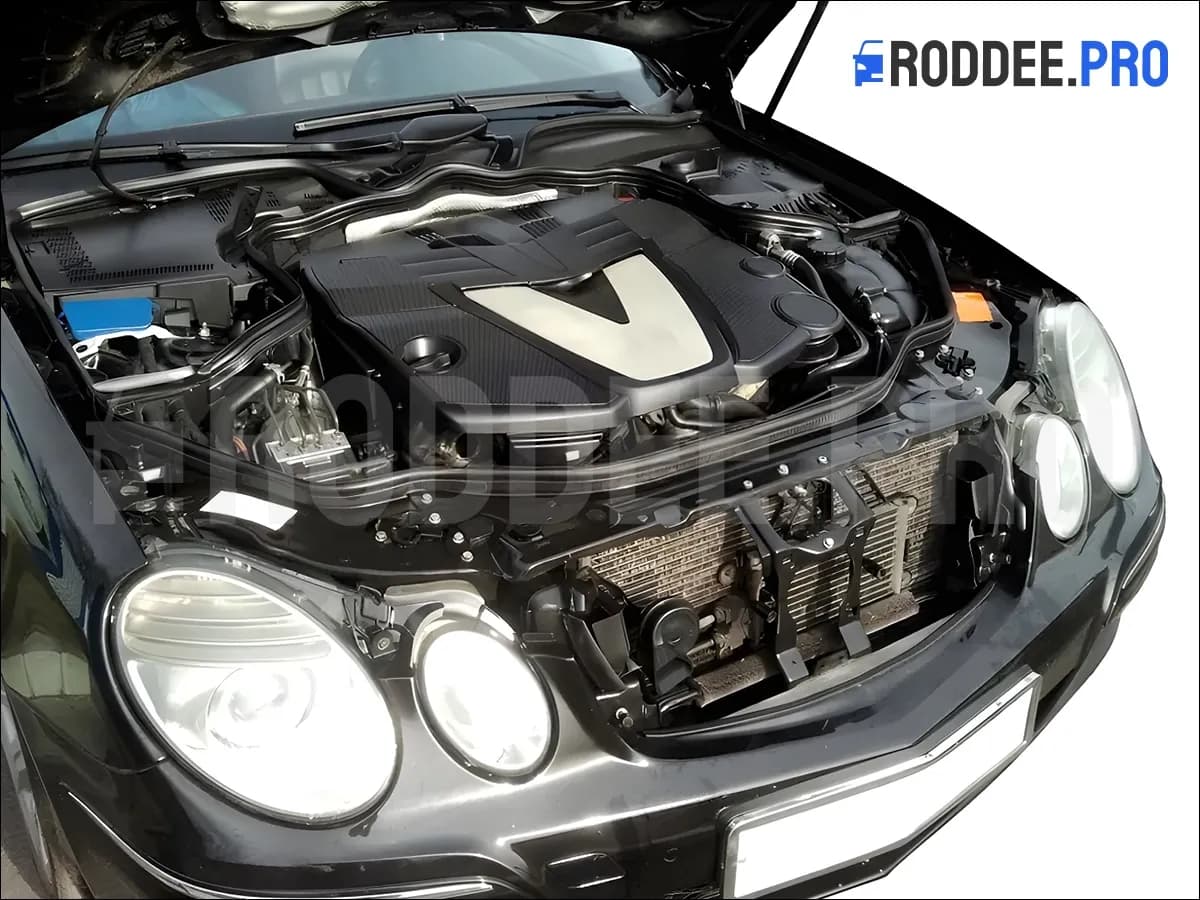

Engine Range: From Economical to Powerful

Kompressor Four-Cylinders

Almost a quarter of all market offerings are cars with a 1.8-liter supercharged engine. In European specification, this engine was equipped with direct injection and developed 170 horsepower. Other markets used distributed injection with an output of 163 hp in the pre-facelift version or 183 hp after the update.

When assessing the condition of the 1.8 engine, you need to listen to the supercharger - extraneous sounds may signal the impending failure of its bearings. However, overall this unit is characterized by a high level of reliability. Pay attention to the sound of the timing chain - rattling on a cold engine may mean that it has stretched and needs replacement.

Classic M112 and M113 Engines

The true gems in the engine lineup for the W211 are the good old Mercedes six- and eight-cylinder M112 and M113 series. These naturally aspirated units are deservedly considered among the most reliable in the brand's history. As they say, they don't make them like that anymore!

The list of possible malfunctions is small: weak catalytic converters and possible oil leaks from under the gaskets. The latter is resolved by revising the crankcase ventilation system. To extend the life of catalytic converters, it's recommended to regularly change the spark plugs, of which there are two for each cylinder. Their replacement requires certain dexterity even on six-cylinder versions, not to mention eight-cylinder units.

Otherwise, the design of these engines is close to ideal: the injection system is quite simple, the piston group and valve timing mechanism serve for a long time, the timing chain doesn't stretch for hundreds of thousands of kilometers, and reliable cast iron sleeves are pressed into the cylinder block.

New Generation M272 and M273 Engines

From 2005, cars began to be equipped with new generation M272 and M273 series engines, which became the main power units for the E-class after the facelift. These motors had their own characteristics and required more attentive maintenance.

One of the key features is the use of the new Alusil cylinder coating in the M272 instead of the usual cast iron liners. This solution was progressive but required a more thorough approach to the selection of consumables and adherence to maintenance intervals.

In V6 engines, the balance shaft with its drive star is located behind the motor, which should be taken into account when planning maintenance. The intake manifold uses plastic flaps, which may require attention over time.

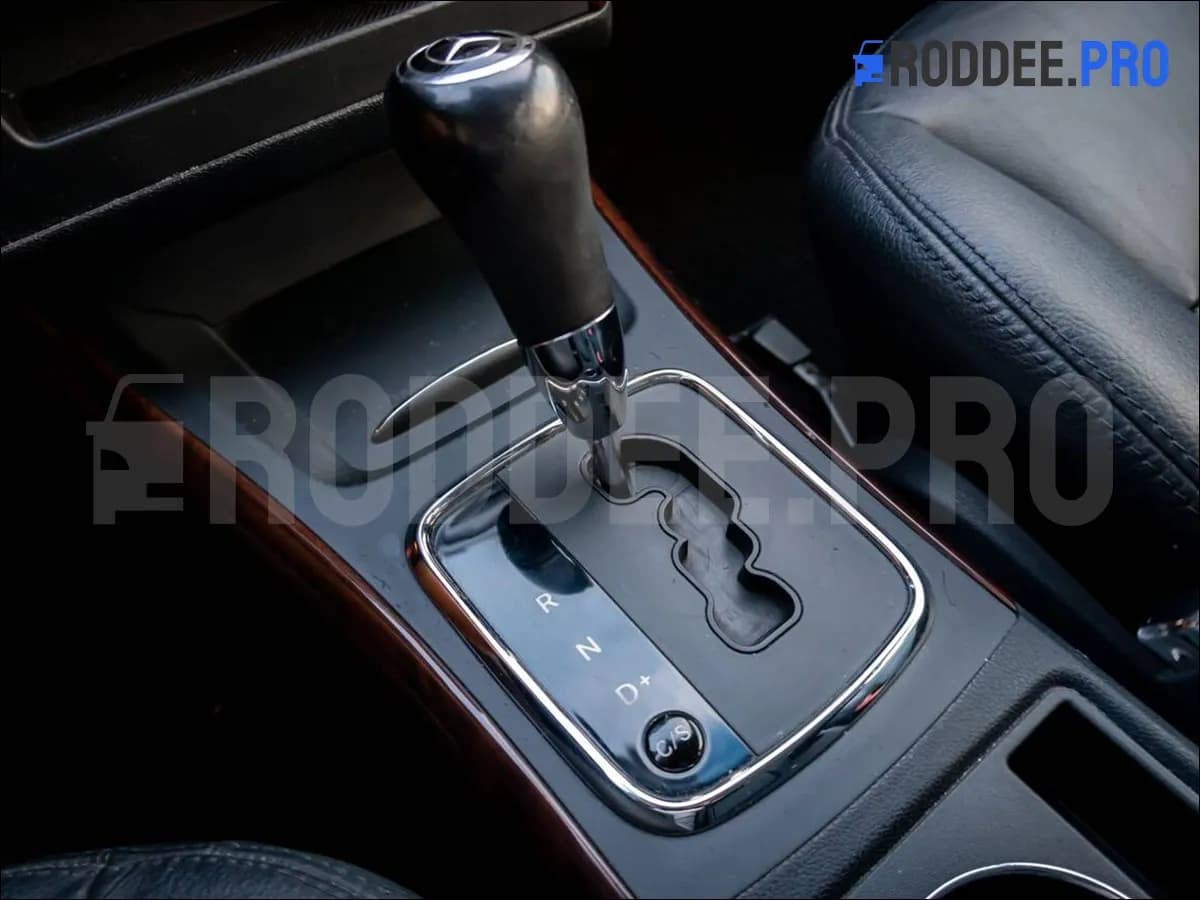

Transmission: From Reliable Classics to Innovative 7G-Tronic

When purchasing a Mercedes, it's important to remember that most cars have rear-wheel drive, which provides special driving dynamics and requires an appropriate driving style.

The automatic transmissions in the W211 are Mercedes-Benz's own developments. Early cars were equipped with the 722.6 series transmission, which earned a reputation as an extraordinarily durable and reliable unit. The only recommendation from specialists is to change the transmission fluid every 60,000 km, contrary to the manufacturer's assurances about lifetime filling.

From 2004, the seven-speed 7G-Tronic (722.9) transmission began to be introduced. This was a revolutionary development, offering smoother shifting and better fuel efficiency. Its feature was a torque converter with controlled friction disc slippage, effectively functioning as a full-fledged clutch. To maximize the service life of this unit, experts also recommend changing the oil every 60,000 km.

Suspension: Comfort and Handling

The spring suspension of the Mercedes-Benz E-class W211 is constructed with traditional German thoroughness and can be considered reliable and trouble-free. It provides an excellent balance between driving comfort and control precision.

The highest manifestation of engineering art in the W211 was the Airmatic pneumatic suspension. This technologically complex system allows adjusting the vehicle's ground clearance depending on speed and road conditions, as well as changing the stiffness of the shock absorbers according to the driver's wishes. When choosing a car with such a suspension, special attention should be paid to checking its functionality the air springs, compressor, seals, and sensors must function flawlessly.

Braking System: Technological Breakthrough

The braking system of the Mercedes-Benz E-class W211 deserves special attention. Pre-facelift cars were equipped with the innovative electrohydraulic SBC (Sensotronic Brake Control) system. An electromechanical hydraulic pump was integrated into the ABS unit instead of the usual vacuum booster.

The system allowed more precise dosing of braking force and provided a number of additional safety functions. After the 2006 facelift, the manufacturer returned to a more traditional braking system while maintaining a high level of braking efficiency and safety.

It's important to monitor the car's electrical power, as the functioning of the brake booster directly depends on the health of the onboard network. The condition of the batteries (there are two of them), the generator, as well as the ground connections on the body must be impeccable for the sake of driving safety.

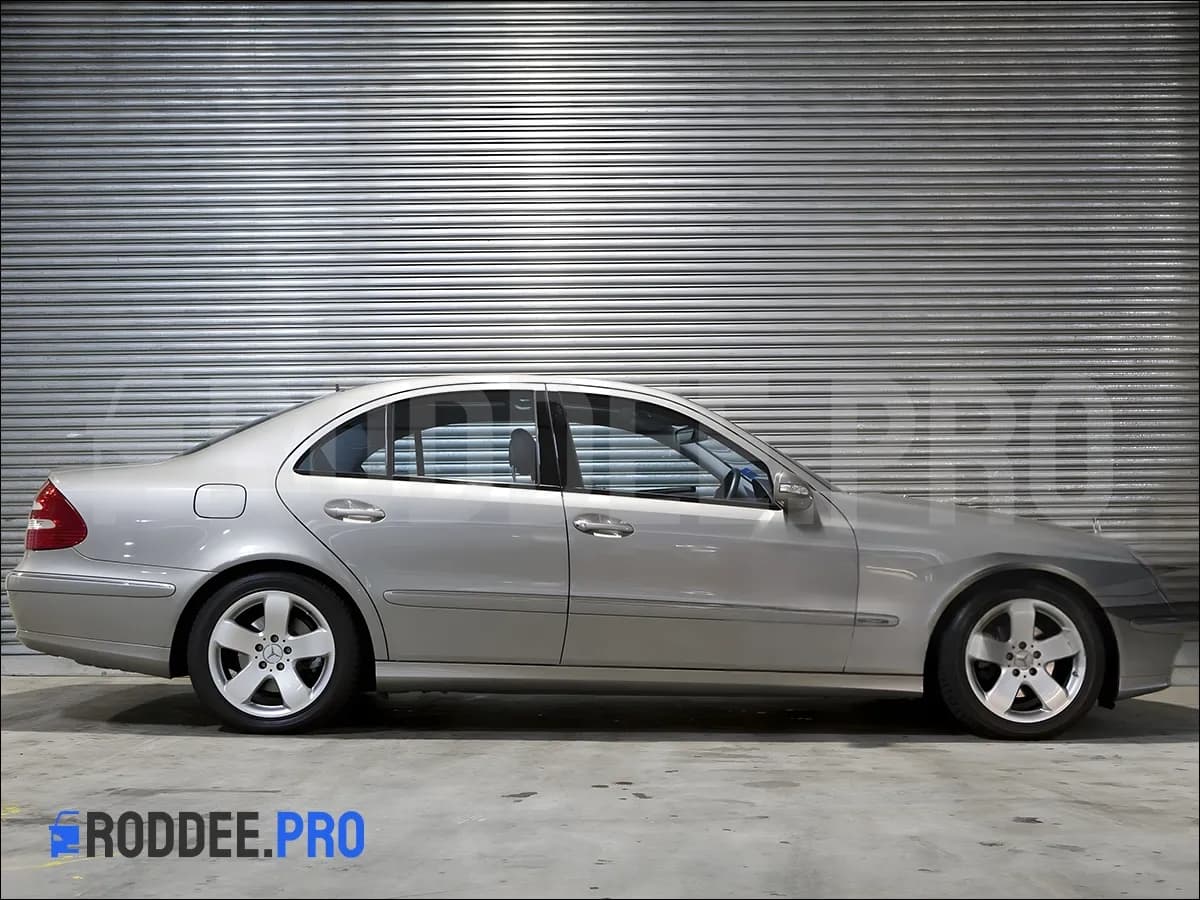

Body and Exterior: Elegance in Every Line

When acquiring a Mercedes, you least expect problems with the body, and this is fair. The W211 is distinguished by high-quality metal and anti-corrosion protection. However, it's important to remember that any damage to the paintwork requires timely attention.

In the early 2000s, Mercedes began active experiments with aluminum. In the W211, the front fenders, as well as the hood and trunk lids, are made from this lightweight metal. This allowed reducing the car's weight and improving its dynamic characteristics.

An interesting engineering detail - on the E320, automatic louvers with an electro-pneumatic drive are installed in the lower part of the bumper. They automatically open if the engine needs more air for cooling. The functionality of this system should be monitored, as it is responsible for ventilation and cooling of the engine compartment.

Interior: Comfort and Luxury

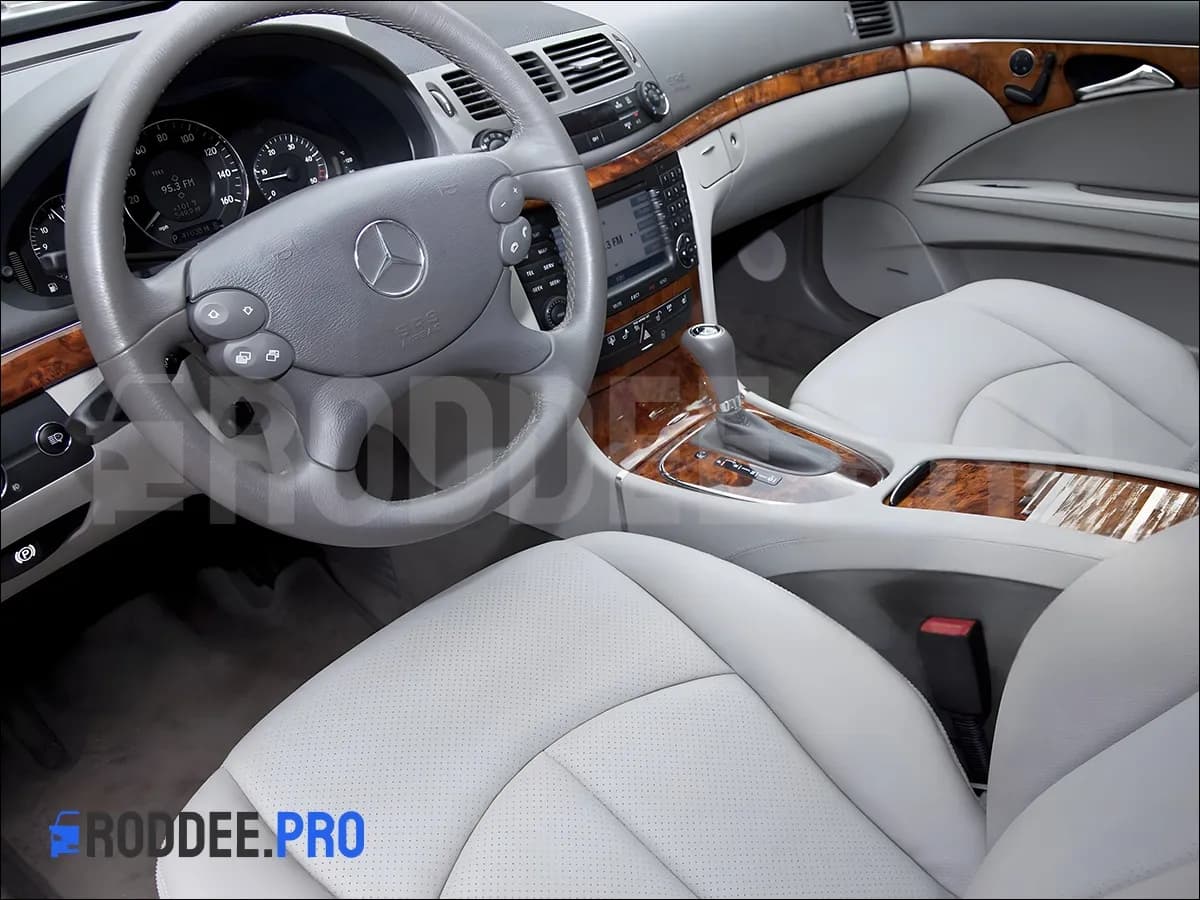

The interior of the Mercedes-Benz E-class W211 is rightfully considered luxurious and can forgive its owner many shortcomings. With the transition from the W210 body to the W211, Mercedes acquired a completely different interior - ess strict, with soft contours and gentle curves.

The interior trim is made of high-quality materials - genuine leather, wood, and aluminum. The front seats with a wide range of adjustments, including electric lumbar support, provide comfort even on long journeys.

Thoughtful ergonomics is another advantage of the W211. All controls are intuitively arranged and easily accessible to the driver. The center console with the Command system combines control of the multimedia system, climate control, and other car functions.

The second row of seats also provides all conditions for comfortable travel. Spacious legroom, comfortable seats with an optimal profile, and dedicated climate control vents make the ride pleasant for all passengers.

The E-class trunk impresses with its volume - 540 liters in the basic configuration. If necessary, it can be increased by folding the rear seat backrests, which is especially convenient for transporting lengthy items.

Electronics and Equipment

The W211 was equipped with state-of-the-art technology of its time. Comfort control, multi-zone climate control, adaptive cruise control, navigation system, premium audio system - all these are available in various E-class configurations.

There were no mass problems with the electrical and electronic systems in this model, but, as with any complex device, age takes its toll. What worked perfectly yesterday may fail tomorrow without apparent reasons. Therefore, when choosing a used specimen, it's important to check the functionality of all electronic systems.

Driving Characteristics and Handling

The Mercedes-Benz E-class W211 is a car created for comfortable and confident driving at any speed. Excellent sound insulation, smooth ride, and precise control make it an ideal companion for both daily city trips and long journeys.

Rear-wheel drive gives a special dynamic to handling. The car stably maintains its trajectory in turns, and electronic stability and traction control systems ensure safety even in difficult road conditions.

Various suspension options allow you to choose the most suitable character for the car: from a comfortable cruiser to a more sporty version with improved handling.

AMG Versions: Power and Prestige

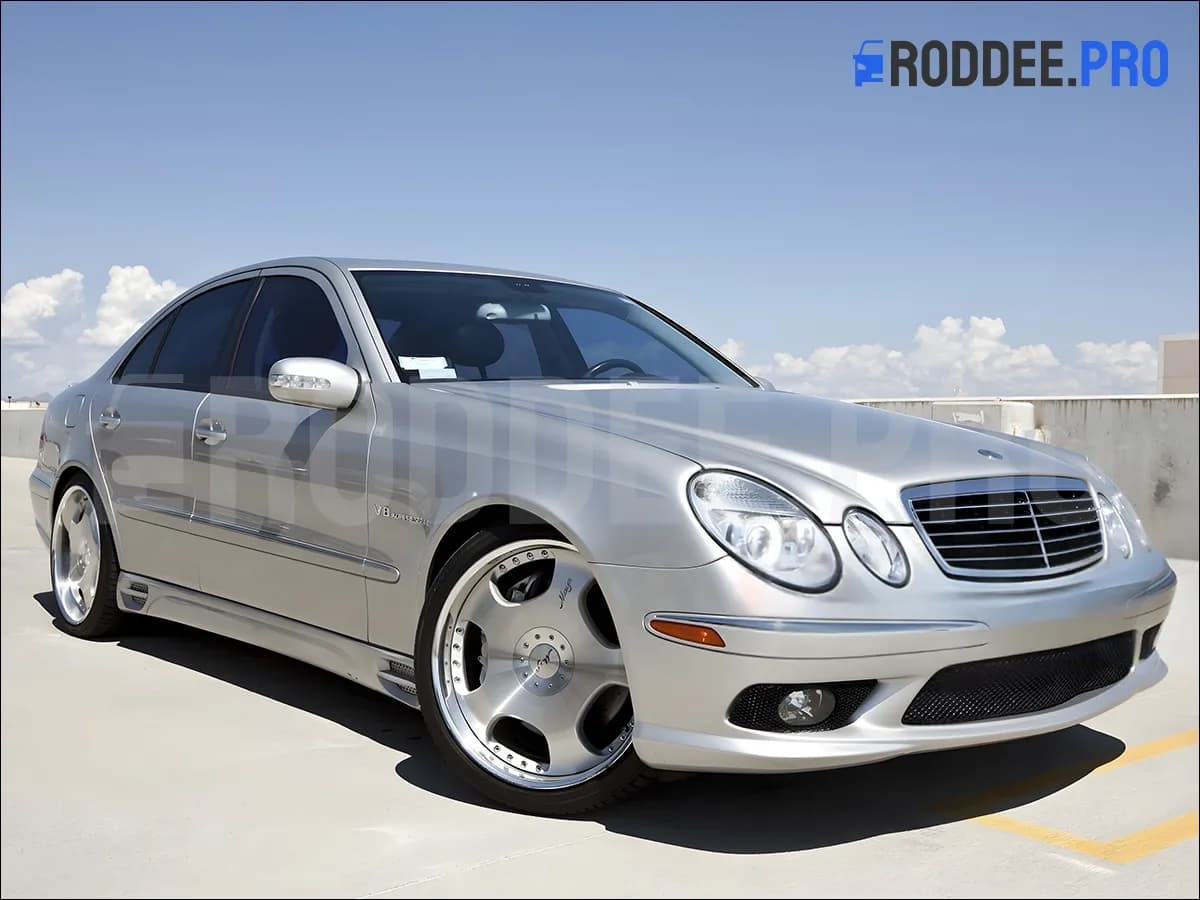

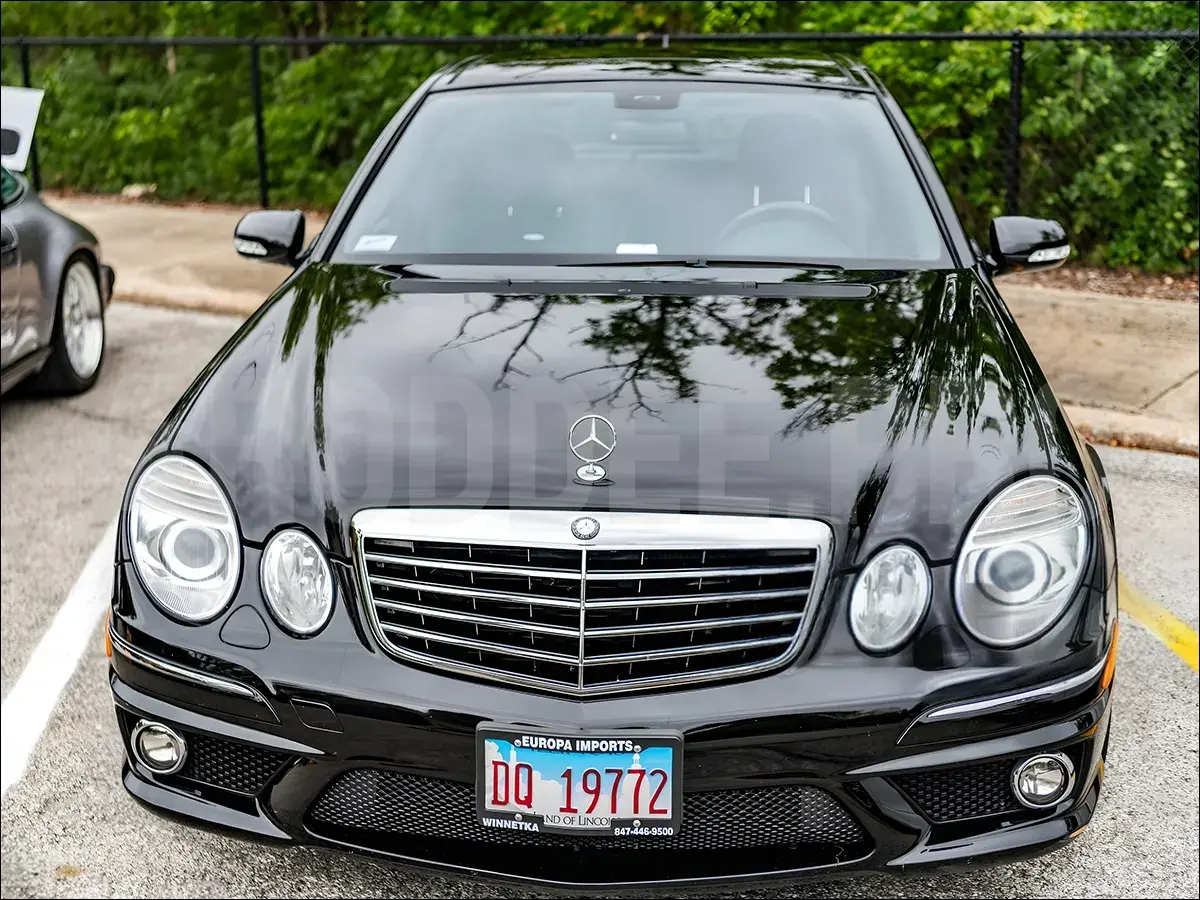

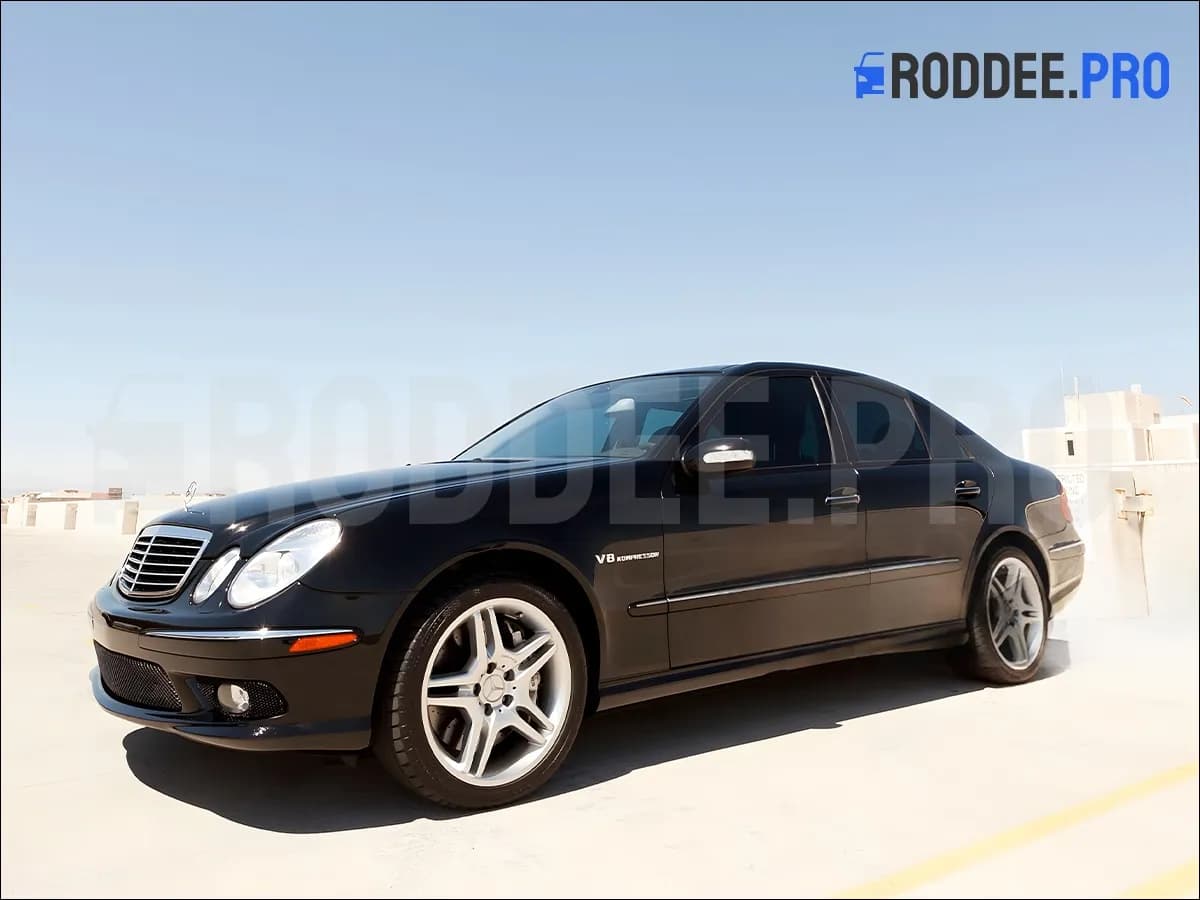

A special place in the W211 lineup is occupied by versions refined by the AMG division. The E55 AMG with a supercharged V8 producing 476 hp and the later E63 AMG with a naturally aspirated 6.2-liter V8 producing 514 hp represent true sports sedans with impressive dynamics.

AMG versions differ not only in more powerful engines but also in refined suspension, reinforced brakes, and special body and interior design. These are cars for those who value the combination of prestige and sporting character.

Choosing a Modification: What to Pay Attention To

When choosing a Mercedes-Benz E-class W211, it's worth paying attention to the following points:

1. Year of manufacture and facelift: Cars after the 2006 facelift received an updated appearance, improved equipment, and elimination of some "childhood diseases" of the first versions.
2. Engine: Versions with six- and eight-cylinder M112 and M113 engines are considered the most trouble-free.
3. Transmission: Early cars with a 5-speed 722.6 automatic transmission are characterized by high reliability.
4. Suspension type: Spring suspension is simpler and more reliable, while pneumatic Airmatic provides better comfort but requires more attentive maintenance.
5. Equipment level: Basic Classic versions, richer Elegance and Avantgarde, as well as exclusive AMG modifications offer different levels of equipment and comfort.

Conclusion: Timeless Values

The Mercedes-Benz E-class W211 is not just a car, it's a work of engineering art, an embodiment of prestige and comfort. Even years after the end of production, this model retains its appeal thanks to elegant design, comfortable interior, and excellent driving characteristics.

Surprisingly, when discussing used cars, we usually advise taking the freshest versions possible as a rule, by the end of production, engineers solve many technical problems, creating the most reliable product. But in the case of the E-class in the W211 body, the situation is different: the least problematic cars are the specimens from the first years of production with six- and eight-cylinder M112/M113 engines and six-speed automatic transmissions.

However, even when choosing such an option, one must understand that it is already about two decades old, and at that age, even the most reliable components and assemblies may require attention. But true connoisseurs of German quality and prestige will always find a way to maintain their car in perfect condition.

The Mercedes-Benz E-class W211 is more than just a means of transportation. It's status, comfort, and driving pleasure. And what else does a true car enthusiast need?
